Working With Freight

Freight is an important Kargo concept. A single "piece of freight" is a set of references to one or more versioned artifacts, which may include one or more:

• Container images (from image repositories)

• Kubernetes manifests (from Git repositories)

• Helm charts (from chart repositories)

Freight can therefore be thought of as a sort of meta-artifact. Freight is what Kargo seeks to progress from one stage to another.

info

To learn the fundamentals of freight and the warehouses that produce freight, see Core Concepts.

The remainder of this page describes features of freight that will enable you to work more effectively.

Names

Like all Kubernetes resources, Kargo Freight resources have a metadata.name field, which uniquely identifies each resource of that type within a given Kargo project (a specially labeled Kubernetes namespace). When a Warehouse produces a new Freight resource, it will compute a canonical representation of the artifacts referenced by that resource and use that, in turn, to compute a SHA-1 hash. This becomes the value of the metadata.name field. The deterministic method of computing this value makes it a unique "fingerprint" of the collection of artifacts referenced by the Freight resource.

Aliases

While the metadata.name field contains a predictably computed SHA-1 hash, such identifiers are, unarguably, not very user-friendly. To make Freight resources easier for human users to identify, Warehouses automatically generate a human-friendly alias for every Freight resource they produce and apply it as the value of the Freight resource's kargo.akuity.io/alias label.

info

Generating aliases of the form <adjective>-<animal> is a strategy borrowed from Docker, which generates similar names for containers not explicitly named by users.

info

Why a label?

Kubernetes enforces the immutability of the metadata.name field for all resources.

Kubernetes labels, by contrast, are both mutable and indexed, which makes them ideal for use as secondary identifiers.

When using the Kargo CLI to query for Freight resources, the alias field is always displayed:

kargo get freight --project kargo-demo

Sample output:

NAME                                       ALIAS              AGE
f5f87aa23c9e97f43eb83dd63768ee41f5ba3766   mortal-dragonfly   35s

Sample output:

NAME                                       ALIAS              AGE
f5f87aa23c9e97f43eb83dd63768ee41f5ba3766   mortal-dragonfly   35s

info

The Kargo UI, to make efficient use of screen real estate, displays aliases only, but a Freight resource's name can always be discovered by hovering over its alias.

note

Kargo CLI commands will accept Freight aliases as an alternative to a Freight name. Refer to the help text for the kargo command for more information.

Updating Aliases

While every Freight resource is automatically assigned an alias, users may sometimes wish to override that alias with one of their own choosing. This can make it easier to identify a particularly important (or problematic) Freight resource as it progresses through the Stages of a pipeline.

To update the Freight Alias:

Using the UI

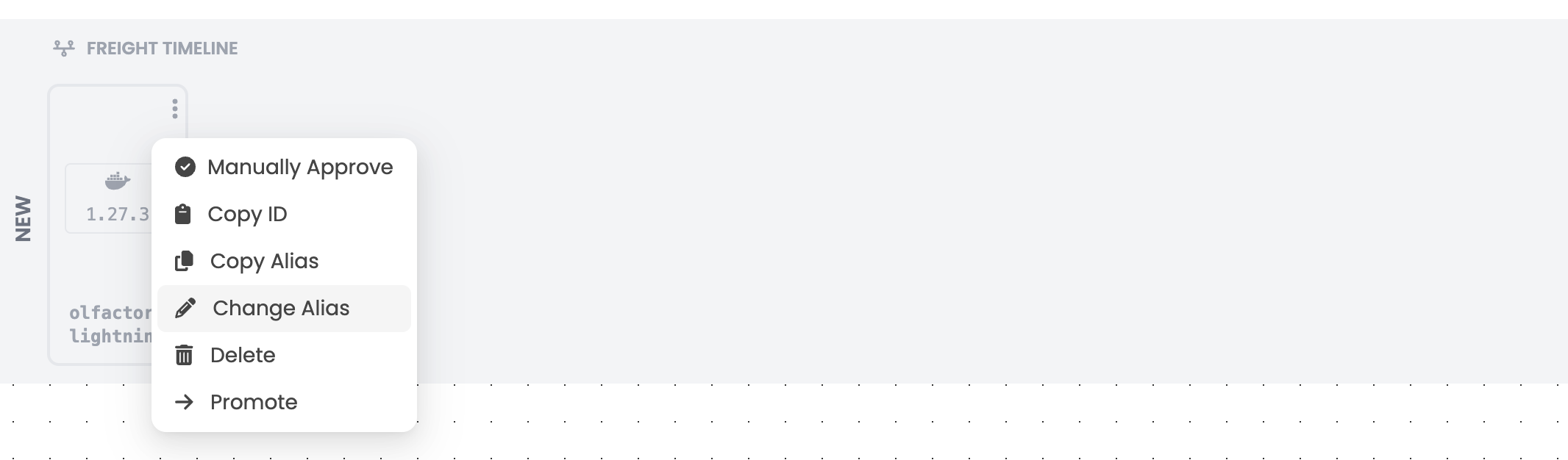

1. Click the three dots on the Freight in the Freight Timeline, then select Change Alias:

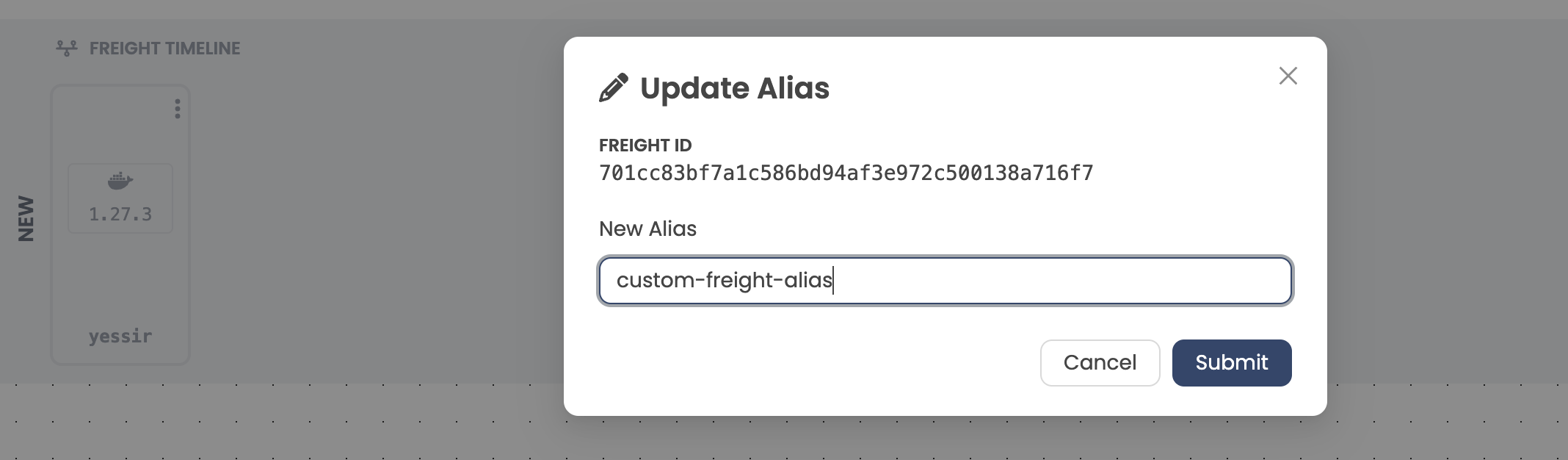

2. Specify a value in the New Alias field and click Submit:



Using the CLI

kargo update freight \
  --project kargo-demo \
  --name f5f87aa23c9e97f43eb83dd63768ee41f5ba3766 \
  --new-alias frozen-tauntaun

Alternatively, you can reference the Freight to which you want to assign a new alias using its existing alias:

kargo update freight \
  --project kargo-demo \
  --old-alias mortal-dragonfly \
  --new-alias frozen-tauntaun

Manual Approvals

The Core Concepts describes the usual process by which Freight resources are verified at each Stage in a pipeline before becoming available to the next Stage or Stages. In brief, it typically requires the Stage to reach a healthy state and, if applicable, any user-defined verification processes to complete with favorable results.

This is suitable for the average case wherein a new Freight resource is expected to traverse the entirety of a pipeline on its way to production, however, it is nearly inevitable that the occasional need for a "hotfix" will arise, in which case it may sometimes be desirable to bypass one or more Stages in the pipeline.

To enable this, Kargo provides the ability to manually approve a Freight resource for promotion to any given Stage. To manually approve the Freight:

Using the UI

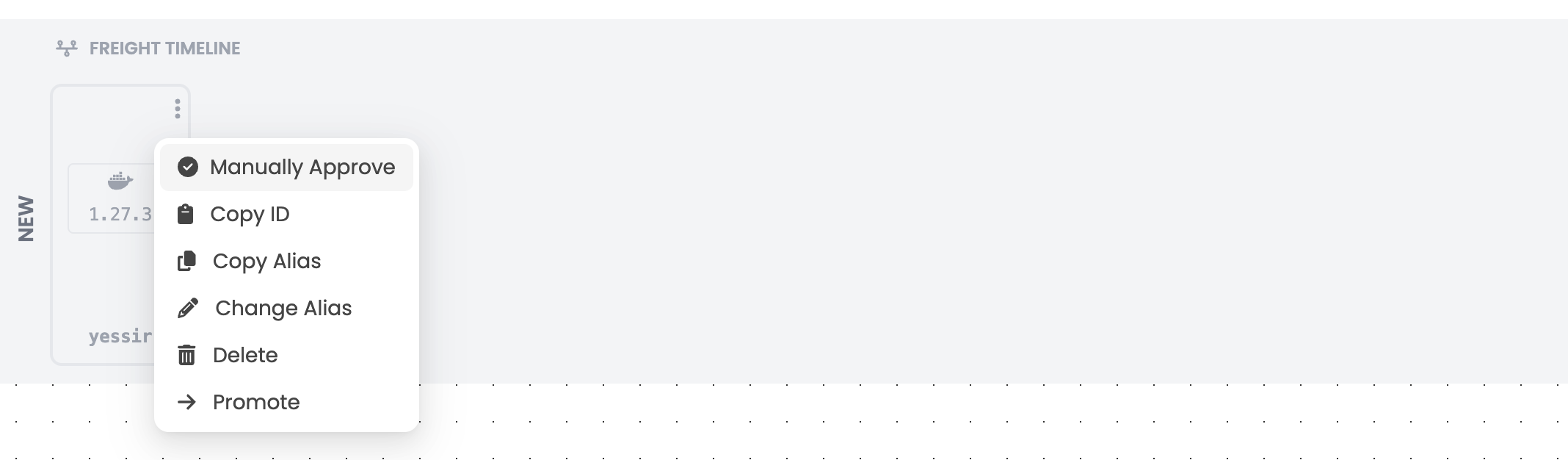

1. Click the three dots on the Freight in the Freight Timeline, then select Manually Approve:

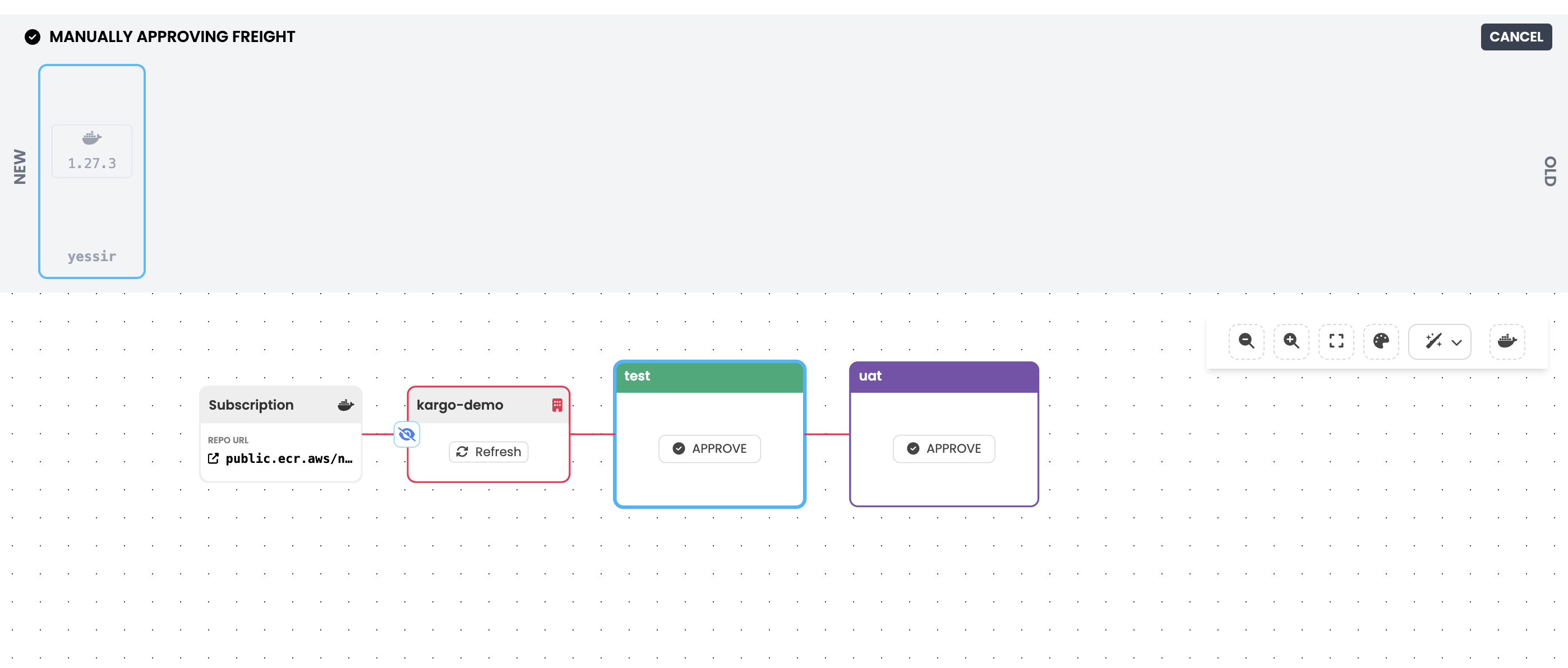

2. Select Approve on the Stage for which you want to approve promotion of the Freight:



Using the CLI

kargo approve \
  --project kargo-demo \
  --freight f5f87aa23c9e97f43eb83dd63768ee41f5ba3766 \
  --stage prod

note

Manually granting approval for a Freight resource to be promoted to any given Stage requires the same level of permissions as would be required to carry out that promotion, although, granting manual approval does not automatically create a corresponding Promotion resource.

After successfully granting manual approval for a Freight resource to be promoted to a given Stage, the Freight resource's status field will reflect that approval.

The following depicts a Freight resource that has been verified in a test Stage through the usual process, but has been manually approved for promotion to the prod Stage. i.e. Any Stages between test and prod may be bypassed:

Using the UI

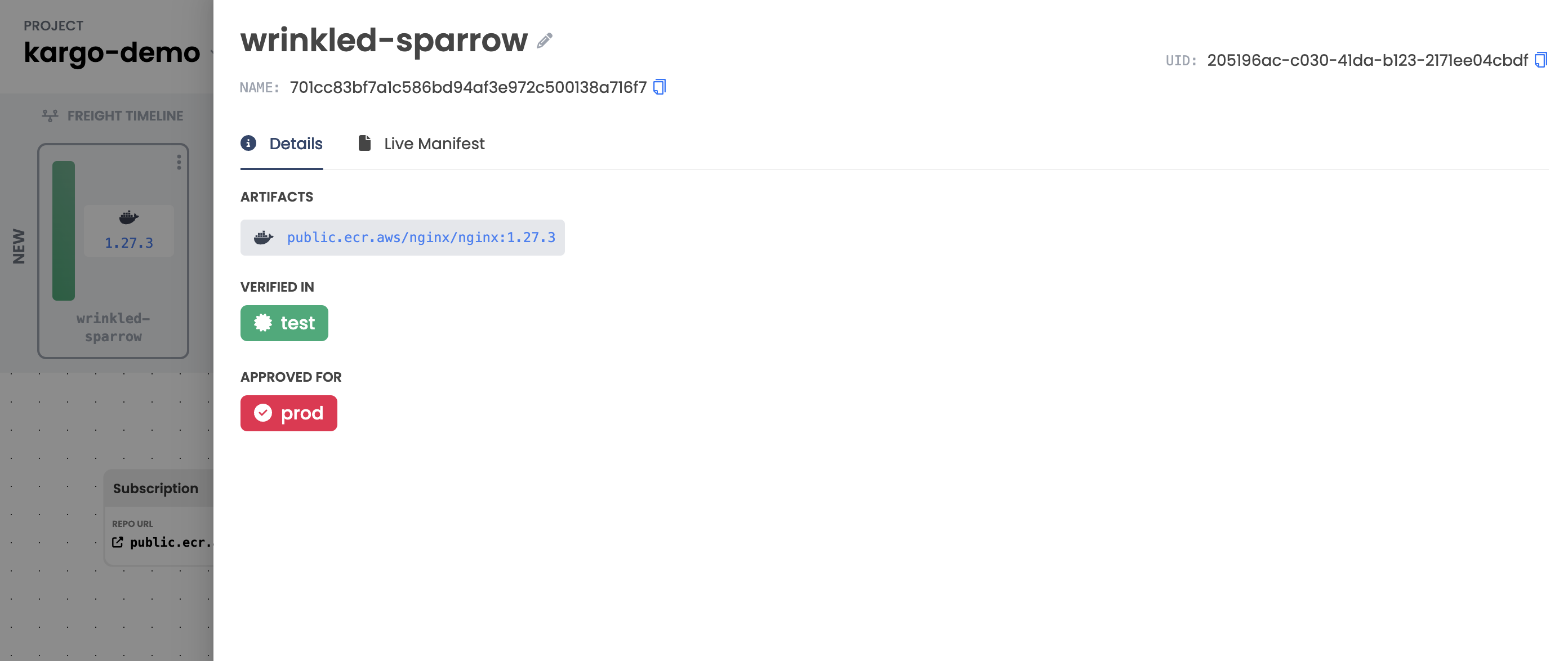

1. Click on the Freight in the Freight Timeline:



Using the CLI

kargo get freight \
  --project kargo-demo \
  --output jsonpath-as-json={.status}

[
    {
        "approvedFor": {
            "prod": {}
        },
        "verifiedIn": {
            "test": {}
        }
    }
]

Promoting Freight to a Stage

Using the UI

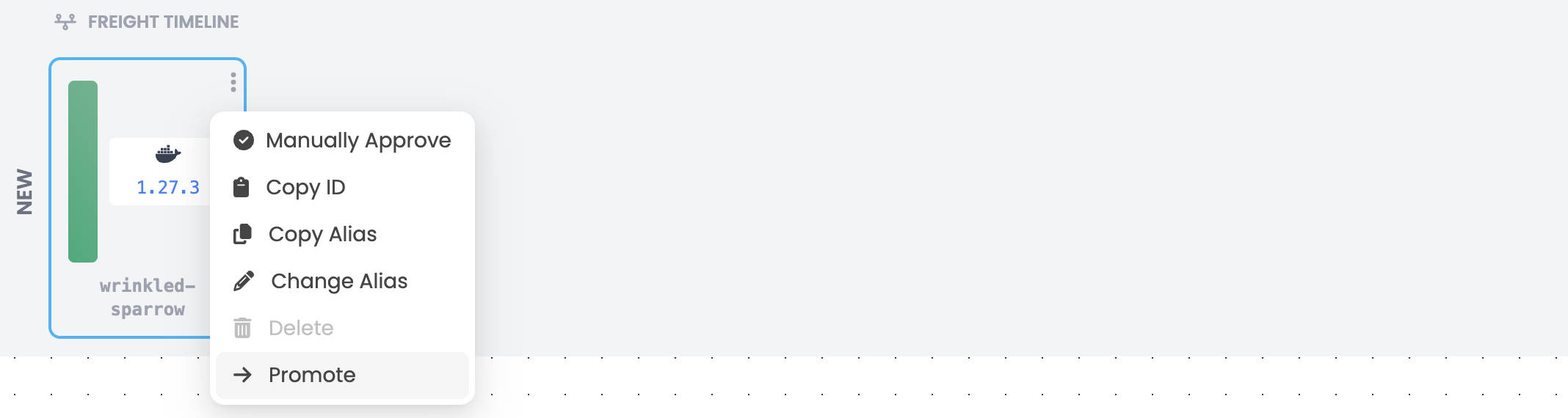

1. Click the three dots on the Freight in the Freight Timeline, then select Promote:

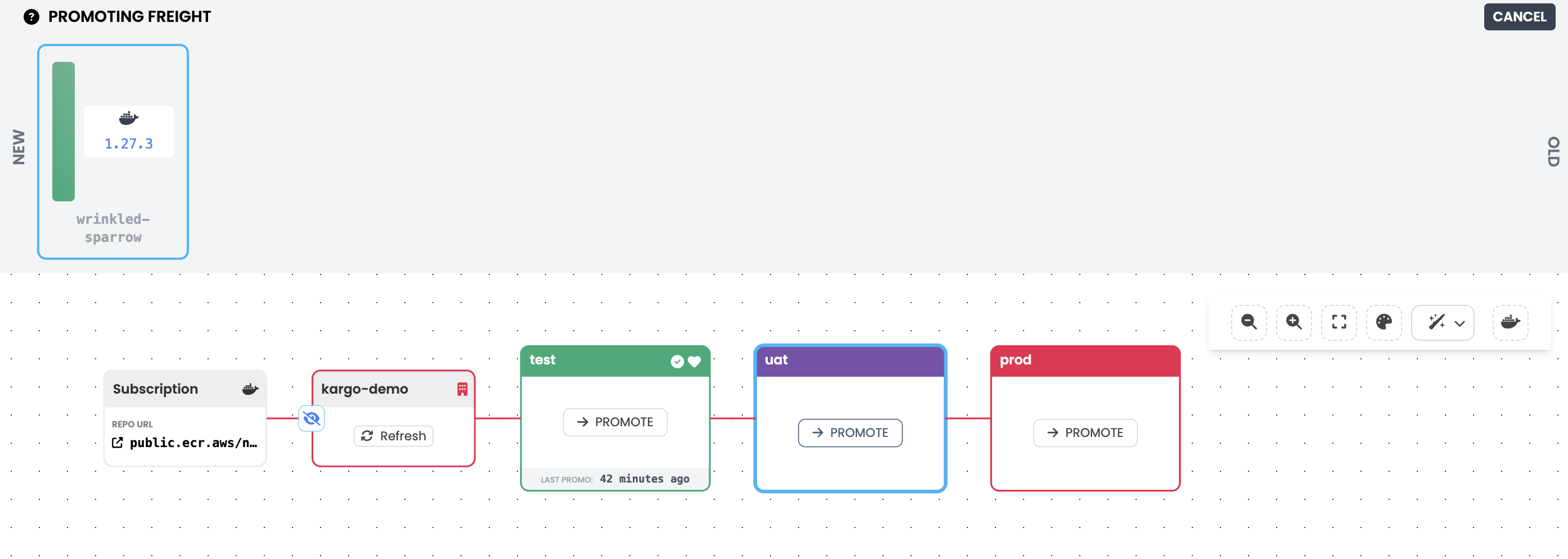

2. Select the Stage and click Promote:



Using the CLI

To promote Freight to a Stage using the CLI, run:

kargo promote \
  --project kargo-demo \
  --freight f5f87aa23c9e97f43eb83dd63768ee41f5ba3766 \
  --stage prod

Alternatively, you can reference the Freight you wish to promote using its alias:

kargo promote \
  --project kargo-demo \
  --freight-alias frozen-tauntaun \
  --stage prod
